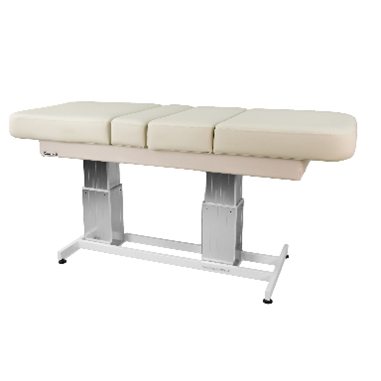

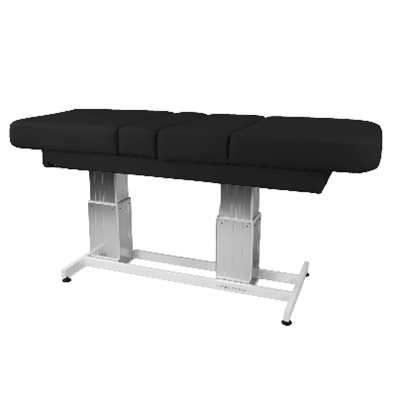

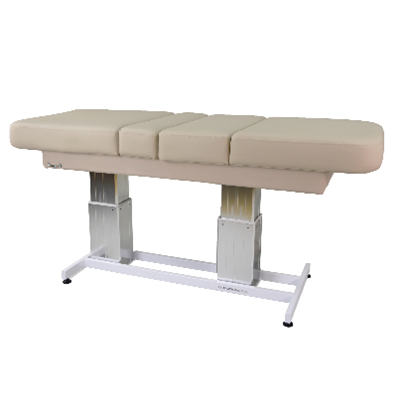

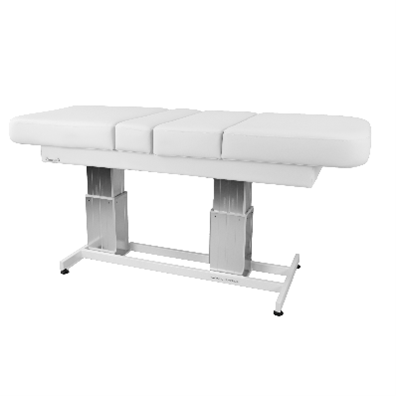

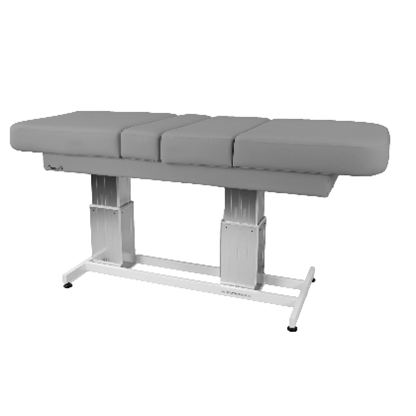

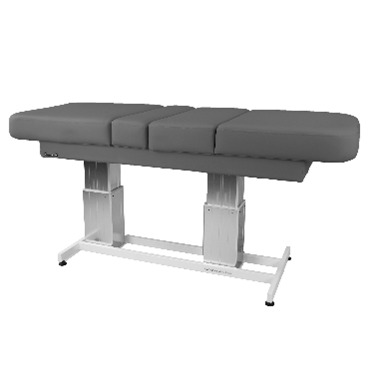

Touch America Atlas Dual-Pedestal Table
This item is shipping directly from the manufacturer. Their current ship time is estimated at 15 days.
Double-pedestal tables are known for their strength and flexibility. The Atlas Classic is a sleek metal-based version of its sister, the Bamboo-trimmed Biologica. The independently-adjustable pedestals base the Altas offers a true Trendelenburg and zero gravity position.
Standard Features:
- Top design: Four-piece adjustable top with round corners, 3-layer foam, 3/4" plywood

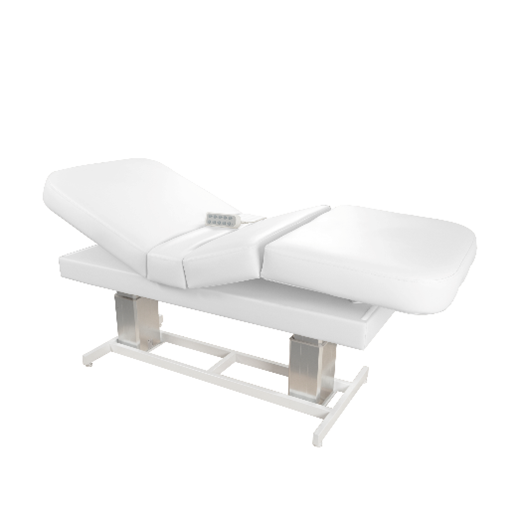

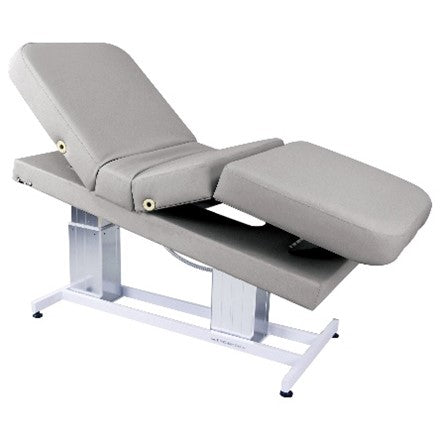

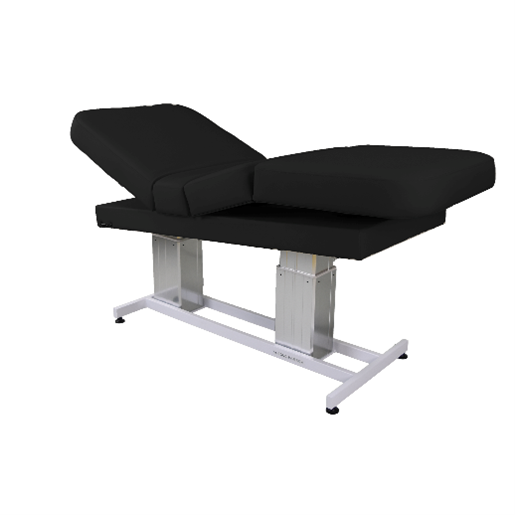

- Top adjustments: Easy motorized adjustments of torso, knee and upper body sections, plus
- the entire top can tilt to either end by using independent pedestal heights
- Back tilt angle 0 to 60°
- Knee tilt angle 0 to 30°
- Max tilt angle (entire top) 0 to 15°
- Top adjustment mechanism: Two 24v DC, 5 amp max motor/actuators, UL recognized; powered through a
- 110v, 5 amp transformer
- Main lift mechanism: Two 24v DC, 5 amp max motor/actuators for height adjustment of 26" to 34"
- (powered through the same transformer as the top actuators)
- Controls: 8-button hand control
- 2-button foot pedal
- Standard size top 30" x 73"
- Foam 2" firm bottom layer + 1- 3/4" medium-density layer of urethane polymer
- Polyester batting 1/2" fluffy polyester Dacron top layer
- Frame: 3/4" plywood frame reinforced for armrests and face cradle
- Carbon steel base in Contemporary design
- White powder-coat finish with twin anodized aluminum pedestals
- Leg recess, head end: 10" recess from ends of table
- Leg recess, foot end: 8" recess from ends of table
- Height range: Standard 26"-34", lower-height option 25"-31", super-tall option 28"-35"Lifting weight
- Lifting weight capacity: 650 lbs.
- Static weight capacity 1000 lbs.
Specifications
- Dimensions: 30"W x 73"L x 24.5" - 32.5" Height Range
- Table weight - 250 lbs.
