The dpl® Flex Pad can be used anywhere on the body. Unlike a heating pad, infrared light therapy works below the skin’s surface reaching deep into tissues, increasing circulation to target pain at the source. Your guests can experience how 60 medical-grade infrared lights can safely stimulate blood circulation, relax muscles, accelerate healing, and relieve pain. FDA-cleared. OTC Class II medical device. This pad has a 10.5" x 5.75" treatment area.
Features & Benefits
Flex Pad:
Powerful medical-grade LED lights
10.5” x 5.75” treatment area
Deep tissue penetration
Beneficial for pain resulting from sports injuries, arthritis, neuropathy, sprains, Carpal Tunnel Syndrome, neck and shoulder stiffness, sore back, ankle swelling, and tissue repair
Safe, natural solution with no side effects
Rechargeable battery to allow mobility (Full charge typically yields three full 20-minute treatments.)
Medical-Grade LEDs:
880nm Infrared
660nm Red

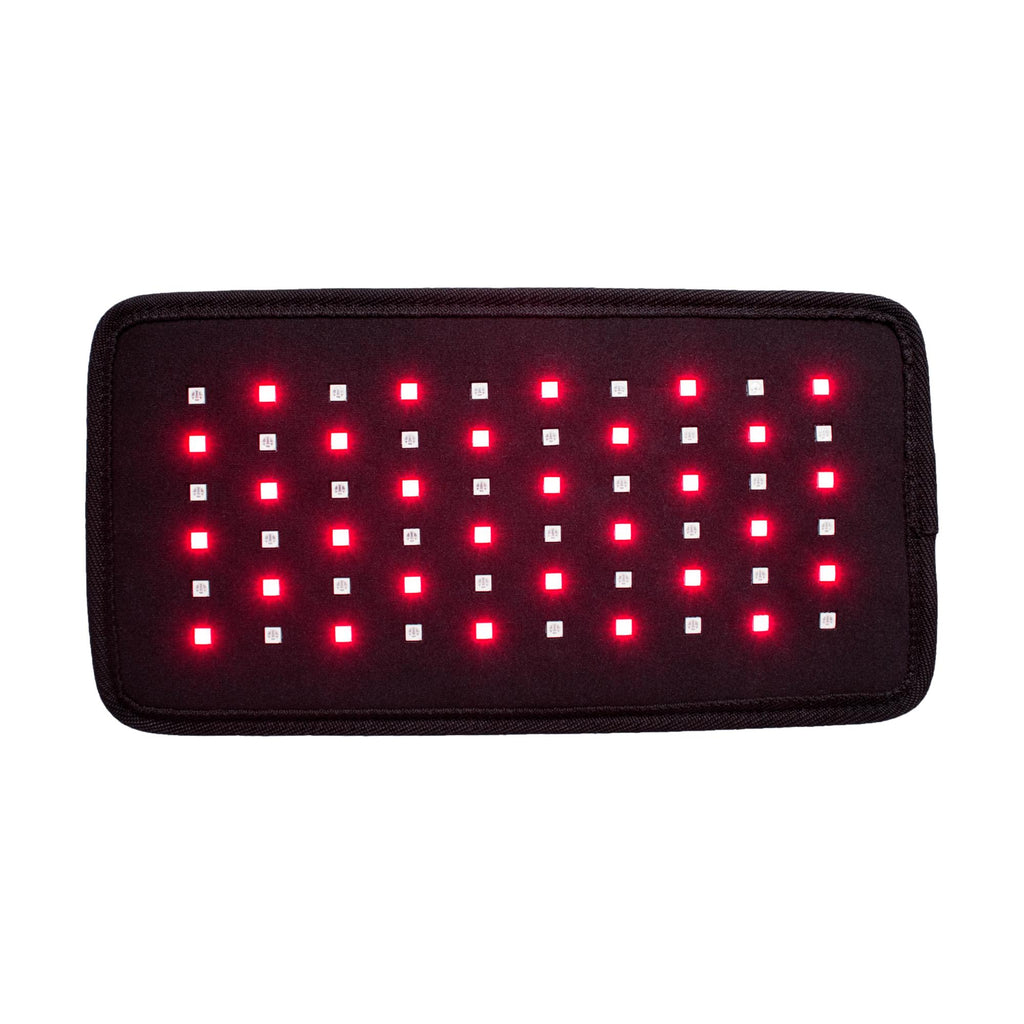

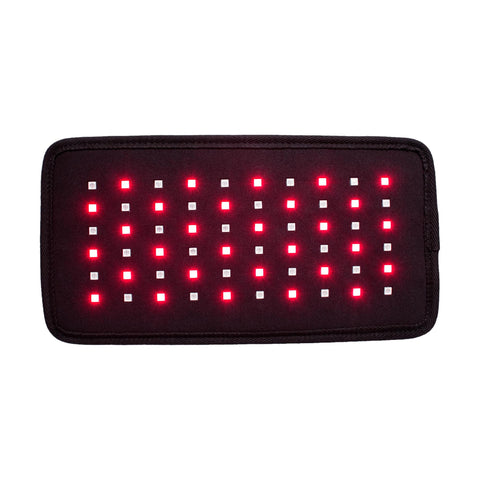

Note: You will only see the red LEDs light up when the device is turned on. The other LEDs are in the infrared light spectrum and cannot be seen with the human eye. Please know that if you see red lights while the device is turned on, the device is working (pattern of lights may vary).
Operating Instructions
1. Fully charge device (2-4 hours).
- Your device may have a residual charge from the factory out of the box, indicated by a solid blue charging light when you turn it on. For best results, fully deplete this charge before plugging your device in.
- Your device will require 2-4 hours to fully charge each time. The red indicator light will turn solid (no longer blinking) when charging is complete. A full charge will provide 2 to 3 full 20-minute treatments.
- DO NOT recharge battery after each 20-minute treatment. For best results, you should fully deplete the battery before recharging. Failure to do so will progressively shorten battery life. Battery charge will diminish over time. For best results, conduct treatments within 48 hours of charging.
2. Wash and dry treatment area prior to use.
3. Place device directly on the skin over the desired treatment area and secure strap.
4. To use large compression strap, fasten center of strap to back of pad, fasten strap by attaching two ends.
5. To use small compression strap, fasten ends of strap to back of pad, adjust to comfortable fit. 6. Press the power button to start the device (may require double press). Device must be unplugged to turn on, it will not turn on while plugged in. A blue light on the battery pack will show when the device is turned on.
7. Leave device over the treatment area for 15-20 minutes.
8. The device is equipped with an auto shut-off function at 20 minutes.
9. Press the power button at any time prior to auto shut off to stop the device.
10. Device may be used multiple times per day. Do not exceed 3 treatments per day, per treatment area.
Troubleshooting
Device not turning on:
Is the device fully charged?
Is the power button turned on? A blue light on the battery pack will show when the device is turned on.
Device is not charging:
Is USB charging cord firmly inserted into device? (Does power indicator light turn on?)
Try different wall outlet to confirm power is available.
Device shuts off abruptly prior to completion of 20-minute treatment:
Device is designed to shut off automatically after 20 minutes.
Device may shut off automatically after multiple repeated uses if the device exceeds desired temperature. Allow device to cool for several minutes and try again.
Some lights appear not to be on:
The Infrared (IR) light spectrum is not visible to the human eye. These lights will look as if they are not on but are operating properly. If red lights are on, the device is operating as designed.
